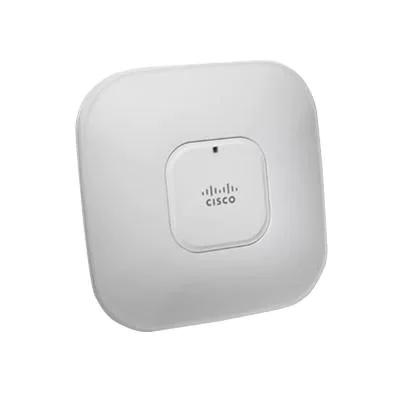

AIR-CAP2602I-A-K9 Specifications |
||||||||
| Software | Cisco Unified Wireless Network Software Release 7.2.110 or later. | |||||||
| Supported Wireless LAN Controllers | ● Cisco 2500 Series, Cisco Wireless LAN Controller Module (WLCM) on Cisco Services Ready Engine (SRE) for Integrated Services Router Generation 2 (ISR G2), Cisco Wireless Services Module 2 (WiSM2), Cisco 5500 Series, Cisco Flex 7500 Series | |||||||
| 802.11n Version 2.0 (and Related) Capabilities | ● 3×4 multiple-input multiple-output (MIMO) with three spatial streams
● Maximal ratio combining (MRC) ● 802.11n and 802.11a/g beamforming ● 20- and 40-MHz channels ● PHY data rates up to 450 Mbps (40-MHz with 5 GHz) ● Packet aggregation: Aggregated MAC Protocol Data Unit (A-MPDU) (Tx/Rx), Aggregated MAC Protocol Service Unit (A-MSDU) (Tx/Rx) ● 802.11 dynamic frequency selection (DFS) ● Cyclic shift diversity (CSD) support |
|||||||
| Data Rates Supported | 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps | |||||||
| 802.11bg: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps | ||||||||
| Maximum Number of Nonoverlapping Channels | 2.4 GHz
● 802.11b/g: ◦ 20 MHz: 3 ● 802.11n: ◦ 20 MHz: 3 |
5 GHz
● 802.11a: ◦ 20 MHz: 21 ● 802.11n: ◦ 20 MHz: 21 ◦ 40 MHz: 9 |
||||||
| Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain. | ||||||||
| Maximum Transmit Power | 2.4 GHz
● 802.11b ◦ 22 dBm: 3 Antennas ● 802.11g ◦ 22 dBm: 3 Antennas ● 802.11n (HT20) ◦ 22 dBm: 3 Antennas |
5 GHz
● 802.11a ◦ 23 dBm: 4 Antennas ● 802.11n (HT20) ◦ 23 dBm: 4 Antennas ● 802.11n (HT40) ◦ 23 dBm: 4 Antennas |
||||||
| Brands | Cisco |
|---|---|
| Warranty | 3 Month |
| Condition | New open box |
