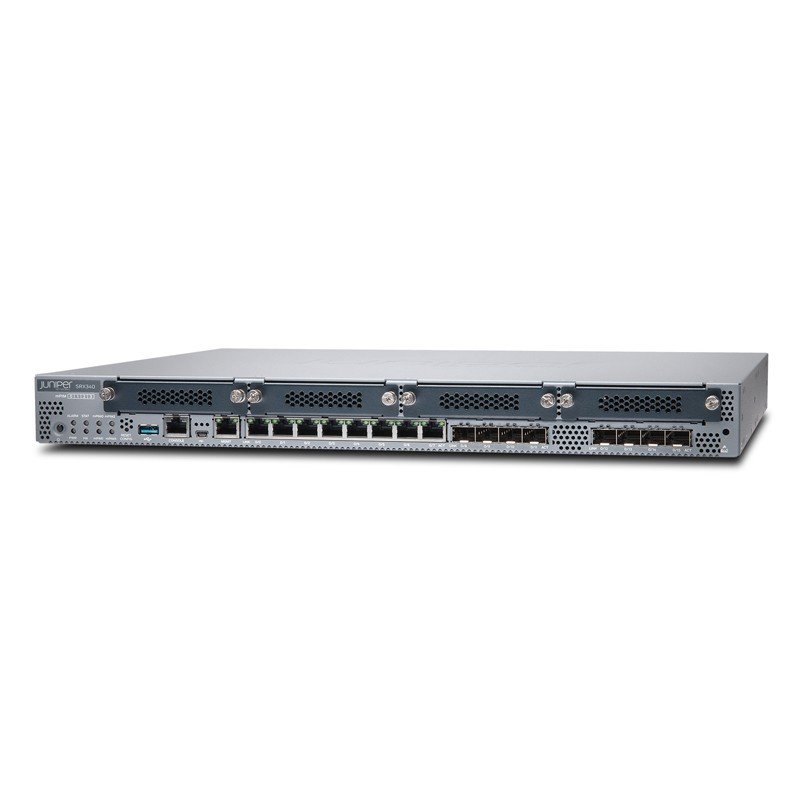

- Product DescriptionJuniper Networks SRX345 Services Gateway – DC Power Supply Unit – security appliance
- Device TypeSecurity appliance
- Form FactorFront to back airflow rack-mountable – 1U
- RAM4 GB
- Flash Memory8 GB
- Ports Qty16
- Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, HDLC, Frame Relay, PPP, MLPPP, MLFR
- PerformanceFirewall throughput (64-byte packet size): 700 Kpps ¦ Firewall throughput (IMIX): 2 Gbps ¦ Firewall throughput (1518-byte packet size): 5 Gbps ¦ VPN throughput (IPSec): 300 Mbps ¦ VPN throughput (1400-byte packet size): 800 Mbps ¦ IPS throughput: 500 Mbps ¦ Connection rate: 20000 connections per second
- CapacityIPv4 routing table entries: 2000000 ¦ IPv6 routing table entries: 1000000 ¦ Concurrent sessions: 512000 ¦ Security policies: 4000 ¦ Maximum number of NAT rules: 2000 ¦ MAC addresses: 15000 ¦ IPSec VPN tunnels: 2048 ¦ GRE tunnels: 1024 ¦ Security zones: 64 ¦ Virtual routers: 128 ¦ Virtual interfaces (VLANs): 3000 ¦ Maximum number of users: 200
- VoIP ProtocolsSDP
- Included AccessoriesRack mount kit
- Dimensions (WxDxH)17.4 in x 14.6 in x 1.7 in
- Weight10.8 lbs
Specifications:
Miscellaneous
| Included Accessories |
Rack mount kit |
| MTBF |
27.4 years |
| Compliant Standards |
FCC Class A certified, RoHS2 |
Networking
| Form Factor |
Rack-mountable |
| Airflow Direction |
Front to back airflow |
| Ports Qty |
16 |
| Connectivity Technology |
Wired |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet, HDLC, Frame Relay, PPP, MLPPP, MLFR |
| Network / Transport Protocol |
RSVP, IPSec, PPPoE, DHCP, DNS, DDNS |
| Routing Protocol |
OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, DVMRP, VRRP, PIM-SM, static IP routing, PIM-DM, OSPFv3, PIM-SSM, MSDP, ECMP, MPLS |
| Remote Management Protocol |
SNMP, Telnet, HTTP, SSH, CLI |
| Performance |
Firewall throughput (64-byte packet size): 700 Kpps ¦ Firewall throughput (IMIX): 2 Gbps ¦ Firewall throughput (1518-byte packet size): 5 Gbps ¦ VPN throughput (IPSec): 300 Mbps ¦ VPN throughput (1400-byte packet size): 800 Mbps ¦ IPS throughput: 500 Mbps ¦ Connection rate: 20000 connections per second |
| Capacity |
IPv4 routing table entries: 2000000 ¦ IPv6 routing table entries: 1000000 ¦ Concurrent sessions: 512000 ¦ Security policies: 4000 ¦ Maximum number of NAT rules: 2000 ¦ MAC addresses: 15000 ¦ IPSec VPN tunnels: 2048 ¦ GRE tunnels: 1024 ¦ Security zones: 64 ¦ Virtual routers: 128 ¦ Virtual interfaces (VLANs): 3000 ¦ Maximum number of users: 200 |
| Features |
Firewall protection, NAT support, VPN support, PAT support, IPv6 support, Intrusion Prevention System (IPS), URL filtering, DDos attack prevention, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, anti-spam protection, Quality of Service (QoS), Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), DHCP server, IPv4 support, LLDP support, DHCP relay, DHCP client, J-Flow, Inspect SSL Encrypted Traffic, Generic Routing Encapsulation (GRE), DiffServ Code Point (DSCP) support, MACsec support, anti-virus protection, Virtual Private LAN Service (VPLS), Label Distribution Protocol (LDP) |
| Encryption Algorithm |
DES, Triple DES, MD5, IKE, SSL, SHA-1, PKI, 256-bit AES, IKEv2, 256-bit SHA |
| Authentication Method |
Secure Shell (SSH), X.509 certificates |
| Compliant Standards |
IEEE 802.1p, IEEE 802.1x |
Environmental Parameters
| Min Operating Temperature |
32 °F |
| Max Operating Temperature |
104 °F |
| Humidity Range Operating |
10 – 90% (non-condensing) |
General
| Device Type |
Security appliance |
| Height (Rack Units) |
1U |
| Width |
17.4 in |
| Depth |
14.6 in |
| Height |
1.7 in |
| Weight |
10.8 lbs |
Processor / Memory / Storage
| RAM |
4 GB |
| Flash Memory |
8 GB |
| Hard Drive |
SSD |
Expansion / Connectivity
| Expansion Slots |
4 (total) / 4 (free) x expansion slot |
| Interfaces |
8 x 1000Base-T – RJ-45 ¦ 8 x 1000Base-X – SFP (mini-GBIC) ¦ 1 x console – RJ-45 ¦ 1 x mini-USB ¦ 1 x USB 2.0 – Type A ¦ 1 x management – RJ-45 |
Power
| Power Device |
Internal power supply |
| Installed Qty |
1 |
| Max Supported Qty |
2 |
Software / System Requirements
| OS Provided |
JUNOS |
| Software Included |
Junos Software Enhanced |
|
