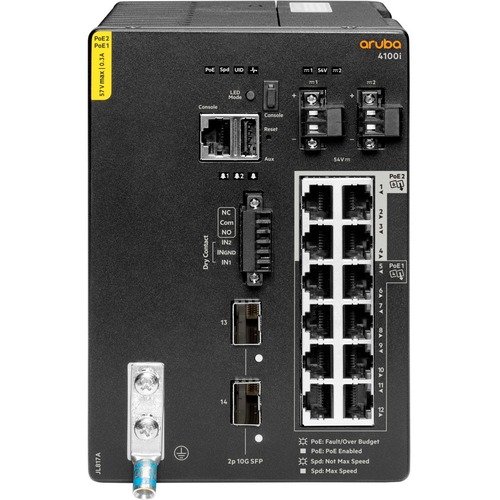

HPE Aruba Networking CX 4100i 12p 1GbE 8p Class4 PoE and 4p Class6 PoE 2p SFP+ DIN Mount Switch

Differentiator 8x ports 100M/1G BaseT Class 4 PoE ports supporting up to 30W per port
2x 1/10G SFP ports
2x DC power socket

Power consumption With JL819A PSU:
Idle: 22W
100% Traffic Rate: 26W
100% Traffic Rate (w/ heater): 55W

With JL820A PSU:
Idle: 24W
100% Traffic Rate: 28W
100% Traffic Rate (w/ heater): 57W

With JL821A PSU:
Idle: 22W
100% Traffic Rate: 27W
100% Traffic Rate (w/ heater): 56W

Note: Heater will only turn on at extreme low temperature condition.

Heat dissipation With JL819A PSU:
89 BTU/hr at 230V – Room temperature (25°C)

With JL820A PSU:
95 BTU/hr at 230V – Room temperature (25°C)

With JL821A PSU:
94 BTU/hr at 48V – Room temperature (25°C)

Input voltage AC voltage: 100V-240V (JL819A and JL820A)
DC voltage: 12V-48V nominal, UL Certified to: 11V-55V (JL821A)

Ports 4x ports 100M/1G BaseT Class 6 PoE ports supporting up to 60W per port
8x ports 100M/1G BaseT Class 4 PoE ports supporting up to 30W per port
2x 1G/10G SFP ports

1x USB-C Console Port
1x RJ45 Console
1x USB Type A Host port
1x Alarm socket

Latency 1 Gbps: 2.390 μSec , 10 Gbps: 2.038 μSec

Average Latency (LIFO-64-bytes packets)

Routing/switching capacity Switching: up to 64 Gbps
Routing throughput: up to 46 Mpps

64 byte frames

Stacking capabilities No stacking capability

Memory and processor 4 GB DDR3
32 GB eMMC

Dual Core ARM Cortex A9 @ 1016 Mhz

Power supply name Field replaceable Industrial DIN Rail Power Supplies Supported PSUs: JL819A, JL820A and JL821A Supported 2 PSU with redundancy, non-sharing See external PSU specification table for available PoE power

PoE capability Refer to Installation and Getting Started Guide for the PoE budget setup.

Operating temperature -40°C to 60°C, 0m/s (-40°F to 140°F, 0 LFM)
-40°C to 70°C, 0.2m/s (-40°F to 158°F, 40 LFM)
-34°C to 75°C, 1m/s (-29.2°F to 167°F, 200 LFM)

Management features Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software.

Detailed product description The HPE Aruba Networking CX 4100i Switch Series is a modern family of ruggedized Ethernet switches ideal for connecting IoT, access points, and user devices in harsh environments.

Weight 3.71 kg (8.18 lbs)

Dimensions H:160 mm x W:113 mm x D:162.9 mm
(D:173.5 mm w/DIN Rail Bracket)
H:6.3” x W:4.4” x D:6.4”
(D:6.8” w/DIN Rail Bracket)
