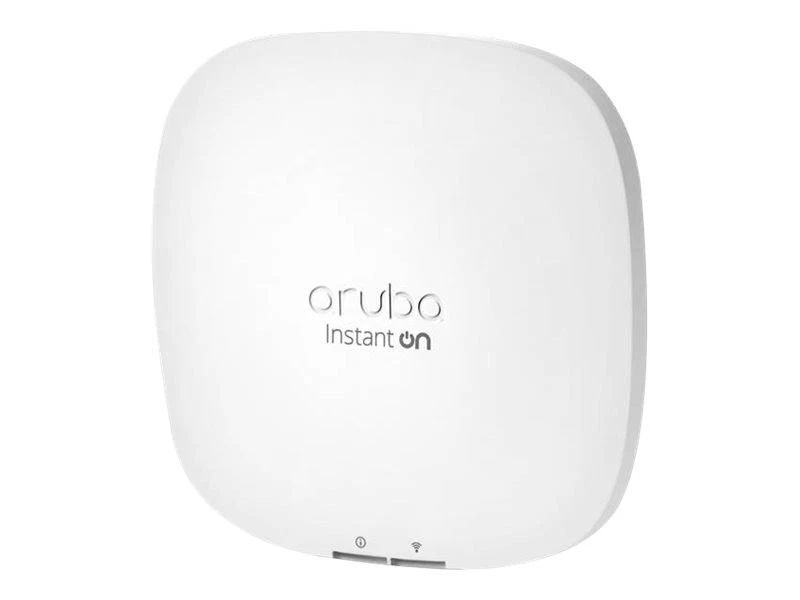

HPE Networking Instant On Indoor Access Point 2×2 Wi‑Fi 6 (RW) AP22

Certifications Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3

Input voltage Power over Ethernet (PoE): 802.3af (class 3) DC power (12V)

Note: Power sources are sold separately unless you purchase the bundle SKU

Wi-Fi antenna Antennas: Down-tilt Dual Omni-directional 2×2 MIMO
Antenna Gain: 4.9 dBi in 2.4 GHz 5.7 dBi in. 5 GHz
Maximum transmit power:
5 GHz band: +21 dBm (+18 dBm per chain, 3 dB MIMO gain)
2.4 GHz band: +20 dBm (+17 dBm per chain, 3 dB MIMO gain)

Connectivity, standard Ultra-fast 802.11ax

Ports 1 GbE BaseT Uplink DC Power Connector Bluetooth Low Energy (BLE) LED status Indicators Reset/LED control button Kensington security slot.

Mounting Ceiling/Wall-mount clip

Power consumption Max power consumption: 10.1W (PoE), 8.8W (DC)

Radio coverage Dual-radio 802.11ax
2×2 5 GHz/2.4 GHz MIMO

Detailed product description The HPE Networking Instant On Access Points AP22 is our core Wi-Fi 6 access point that gives you the bang for your buck. It hosts a 2×2 antenna array supporting 2 spatial streams with a max aggregate data rate of 1.7 Gbps. The AP22 is ideal for corporate offices, healthcare facilities and hybrid classrooms that require EN certification, or hybrid classrooms.

Differentiator In the Box:
HPE Networking Instant On Access Point
Quick Start guide
Combined ceiling and wall rail mount clip
Ethernet cable

Add PoE or DC power source
For use in those countries and regions where no specific regulatory domain is required.

Weight 500 g (1.1 lb)

Dimensions 37x 160 x 160 mm (1.5 x 6.3 x 6.3 in)
