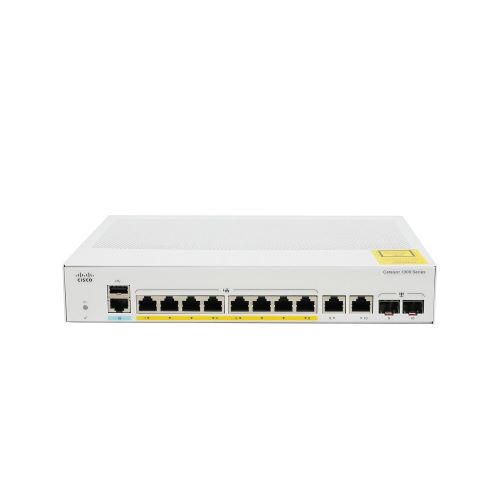

C1000-8FP-2G-L Specification |
|
| Gigabit Ethernet ports | 8 |
| Uplink interfaces | 2 SFP/ RJ-45 combo |
| PoE+power budget | 120W |
| Fanless | Y |
| Dimensions (WxDxH in inches) | 10.56 x 12.73 x 1.73 |
|
Console ports |
|
| RJ-45 Ethernet | 1 |
| USB mini-B | 1 |
| USB-A port for storage and Bluetooth console | 1 |
|
Memory and processor |
|
| CPU | ARM v7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
|
Performance |
|
| Forwarding bandwidth | 10 Gbps |
| Switching bandwidth | 20 Gbps |
| Forwarding rate(64—byte L3 packets) | 14.88 Mpps |
| Unicast MAC addresses | 16000 |
| IPv4 unicast direct routes | 542 |
| IPv4 unicast indirect routes | 256 |
| IPv6 unicast direct routes | 414 |
| IPv6 unicast indirect routes | 128 |
| IPv4 static routes | 16 |
| IPv6 static routes | 16 |
| IPv4 multicast routes and IGMP groups | 1024 |
| IPv6 multicast groups | 1024 |
| IPv4/MAC security ACEs | 600 |
| IPv6 security ACEs | 600 |
| Maximum active VLANs | 256 |
| VLAN IDs available | 4094 |
| Maximum STP instances | 64 |
| Maximum SPAN sessions | 4 |
| MTU-L3 packet | 9198 bytes |
| Jumbo Ethernet frame | 10,240 bytes |
| Dying Gasp | Yes |
| MTBF in hours (data) | 2,171,669 |
| MTBF in hours (PoE) | 1,786,412, 1,706,649 (External PS) |
| MTBF in hours (Full PoE) | 1,706,649 |
|
Environmental |
|
| Operating temperature Seal level | -5 to 50 deg C* |
| Up to 5,000ft (1500 m) | -5 to 45 deg C |
| Upto 10,000 (3000 m) | -5 to 40 deg C |
| Operating altitude | 10,000 ft (3,000m) |
| Operating relative humidity | 5% to 90% at 40C |
| Storage temperature | -13 to 158F (-25 to 70C) |
| Storage altitude | 15,000 ft (4500m) |
| Storage relative humidit | 5% to 95% at 65C |
| Brands | Cisco |
|---|---|
| Warranty | 6 Month |
| Condition | New Retail |
