3000W AC Power Supply Module for S7700 Series Switch PAC3ks54-CE

Original price was: 1.925,00 AED.Current price is: 1.750,00 AED.

SKU PAC3KS54-CE 02312FFP-001 Category Switches

Basic Info.

Model NO.

PAC3KS54-CE

Ports

None

Availability

> 0.99999

Weight (Without Packaging)

3kg

Transport Package

Cartons

Specification

41 mm x417.4 mm x 130 mm

Origin

China

HS Code

8517623200

Production Capacity

5000PCS/Month

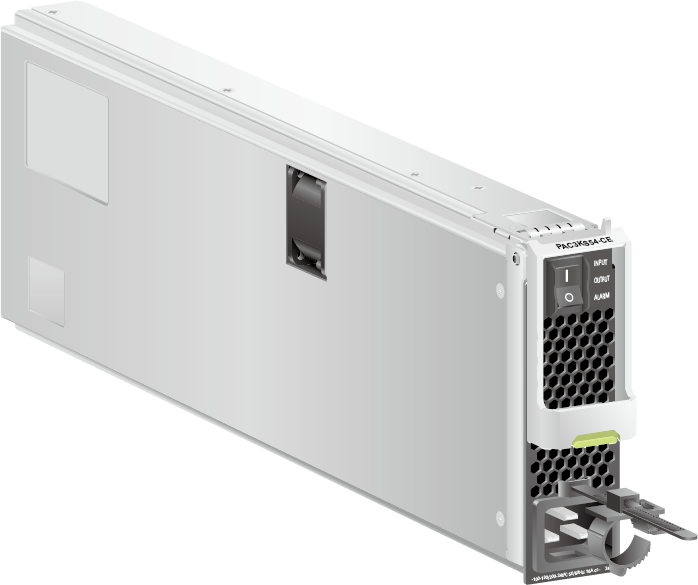

HW PAC3KS54-CE, 3000 W AC power module, can be installed in card slot on S7700 switch.

PAC3ks54-CE 3000W AC Power Supply Module for S7700 Series Switch

Version Mapping
S7700 Chassis: supported in In V200R012C00 and later version
Technical specifications
Input	Rated input voltage	220 V AC/110 V AC; 50/60 Hz 240V DC
	Rated input voltage range	90V AC~290V AC;47Hz~63Hz 190V DC~290V DC
	Maximum input voltage range	90 V AC to 290 V AC; 47 Hz to 63 Hz (When the input voltage is in the range of 90 V AC to 175 V AC, the power module provides up to half of the maximum output power.)
	Maximum input current	16 A
Output	Maximum output current	51.6 A (220 V AC input)/28.1 A (110 V AC Input)
	Maximum output power	3000 W (220 V AC input)/1500 W (110 V AC input)
Dimensions (W x D x H)	41 mm x 417.1 mm x 130 mm (1.6 in. x 15.5 in. x 5.1 in.)
Weight	3 kg
Environment parameters	Operating temperature: 0°C to 45°C (32°F to 113°F) Operating relative humidity: 5% RH to 95% RH (noncondensing) Storage temperature: -40°C to +70°C (-40°F to +158°F) Storage relative humidity: 5% RH to 95% RH (noncondensing)
