Cisco Nexus 9000 Switch Modules & Cards N9K-SC-A

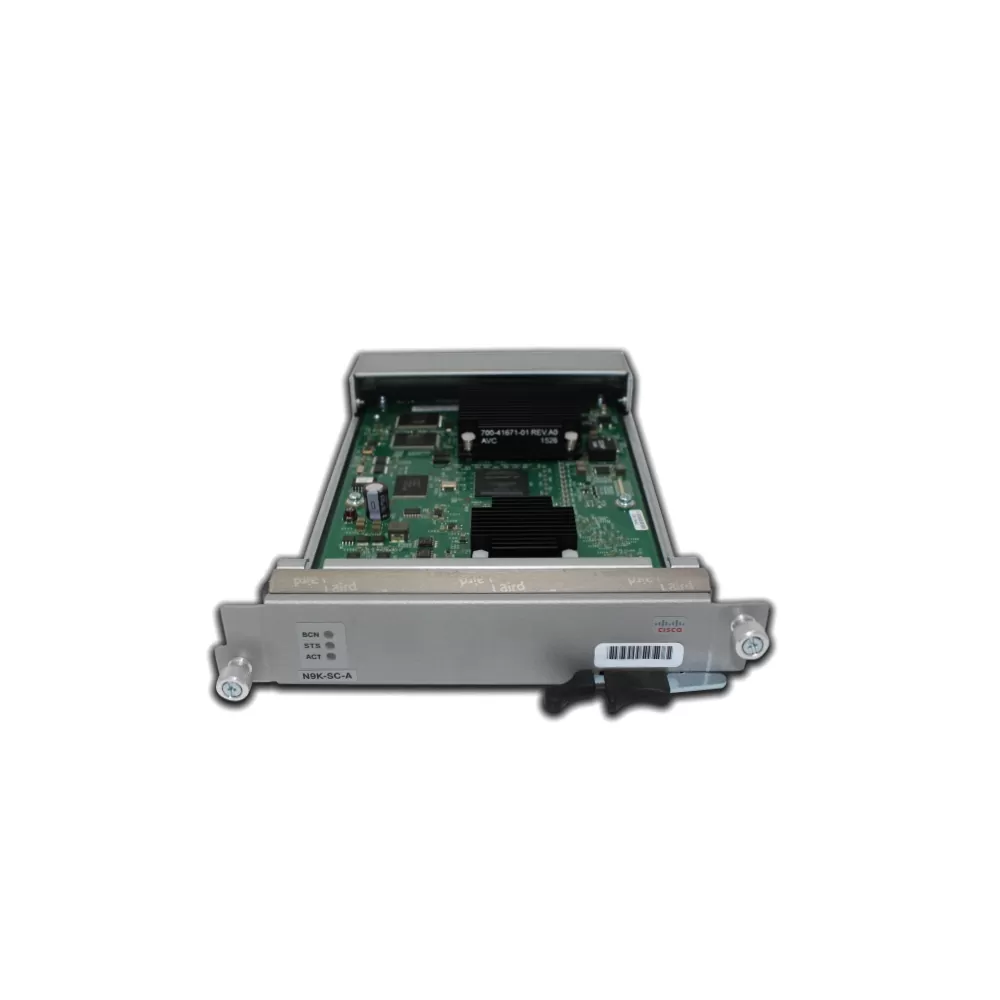

Cisco N9K-SC-A Switching Module – High-Performance Fabric Card for Nexus 9500 Series Chassis

The Cisco N9K-SC-A is a fabric switching module (also known as a switch fabric card) designed exclusively for the Cisco Nexus 9500 Series modular switches, including the Nexus 9504, 9508, and 9516 chassis. As a critical component of the system’s data plane architecture, the N9K-SC-A enables non-blocking, high-throughput communication between line cards, ensuring low-latency, scalable performance for demanding data center environments.

Unlike supervisor or line cards that handle control-plane or port connectivity, the N9K-SC-A operates entirely in the data plane, providing the internal high-speed switching fabric that interconnects all modules within the chassis. This separation of control and data planes is fundamental to the Nexus 9000’s architecture, delivering resilience, modularity, and performance at scale.

Key Features & Technical Overview

• Model: N9K-SC-A
• Function: Switch Fabric Card (SFC)
• Compatible Chassis: Cisco Nexus 9504, 9508, 9516
• Fabric Capacity: Supports up to 4.8 Tbps per slot (aggregate system capacity scales with number of fabric cards installed)
• Redundancy: Supports N+1 fabric redundancy—multiple N9K-SC-A cards can be installed for high availability
• Hot-Swappable: Yes—can be replaced without powering down the chassis
• Cooling: Integrated airflow design matching chassis orientation (port-side intake or exhaust, depending on variant)
• Management: Monitored via Cisco NX-OS and Cisco DCNM for health, temperature, and status

Note: The N9K-SC-A does not provide external ports—it is an internal switching fabric component only.

Role in the Nexus 9500 Architecture

In the Nexus 9500 modular system, traffic flows as follows:

1. Line cards receive and transmit data through external network ports.
2. Supervisor modules (e.g., N9K-SUP-A) manage the control plane (routing, protocols, management).
3. Fabric cards (N9K-SC-A) interconnect line cards at full line rate, enabling any-to-any communication across the chassis.

This distributed architecture ensures that:

• No single point of failure exists in the data path (with redundant fabric cards).
• Scalable bandwidth is achieved by adding more fabric cards.
• Deterministic latency is maintained, even under full load.

For example, in a Nexus 9508 chassis, installing three N9K-SC-A fabric cards provides full non-blocking performance across all eight line card slots—essential for spine switches in a Clos fabric or high-density leaf deployments.

High Availability & Resilience

The N9K-SC-A is engineered for carrier-grade reliability:

• N+1 redundancy: A chassis can operate with one fabric card failed, as long as minimum fabric requirements are met.
• Stateless design: Fabric cards contain no persistent configuration—simplifying replacement and reducing recovery time.
• Real-time monitoring: Fabric health, CRC errors, and throughput are visible via NX-OS CLI (show fabric commands) and Cisco DCNM.

This resilience is critical in financial services, cloud providers, and large enterprises where network downtime directly impacts revenue and user experience.

Installation & Best Practices

• Minimum Fabric Cards:
  • Nexus 9504: 2 fabric cards (for full bandwidth)
  • Nexus 9508: 3 fabric cards
  • Nexus 9516: 5 fabric cards
    (Always refer to Cisco’s latest hardware installation guide for exact requirements.)
• Airflow Consistency: Ensure all components (power supplies, supervisors, line cards, fabric cards) use the same airflow direction (e.g., all port-side intake). Mixing airflow types can cause overheating.
• Firmware Compatibility: The N9K-SC-A must run a compatible NX-OS version. Cisco recommends using the same software train across all modules.

Why Use Genuine Cisco N9K-SC-A Modules?

Third-party or used fabric cards may lack:

• Firmware validation and secure boot
• Accurate telemetry and error reporting
• Compatibility with newer line cards or NX-OS features
• Cisco TAC support in case of fabric-level issues

Given that the fabric card is foundational to system performance, only Cisco-original N9K-SC-A modules guarantee full interoperability, support, and long-term stability.

Use Cases

• Spine switches in large-scale ACI or VXLAN fabrics
• High-density leaf switches aggregating 10/25/100G server traffic
• Core data center interconnects requiring non-blocking throughput
• Financial trading networks where microsecond latency matters

Technical Summary

Conclusion

The Cisco N9K-SC-A Switch Fabric Card is the unsung hero of the Nexus 9500 platform—enabling massive scale, deterministic performance, and enterprise-grade resilience. While invisible to end users, its role in maintaining a robust, high-speed internal fabric is indispensable for modern data centers running ACI, cloud-native applications, or high-frequency workloads. For organizations deploying or maintaining Nexus 9500 chassis, the N9K-SC-A is a mission-critical component that demands genuine Cisco quality, compatibility, and support.
