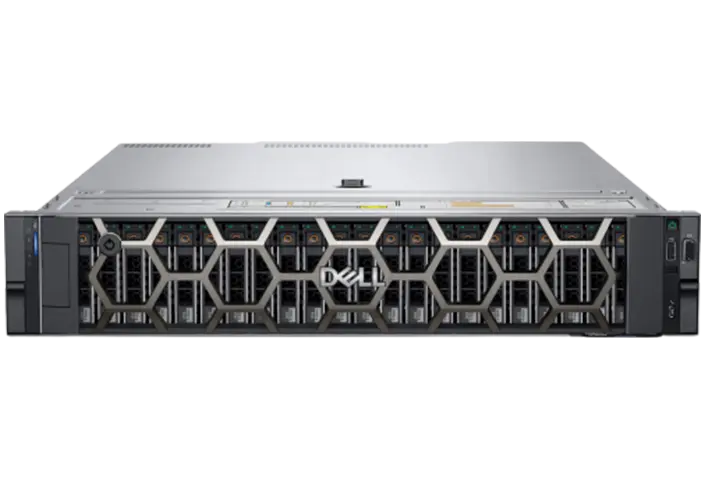

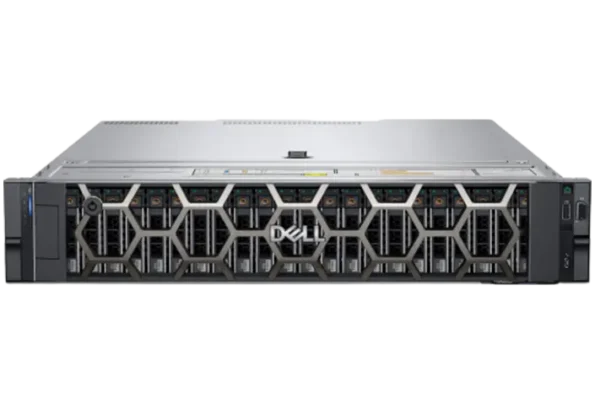

Dell PE R750xs 8×3.5”: Xeon 4310 (2.1G/12C/18MB Cache/120W), 32GB 3200Mhz DDR4 RDIMM, 2.4TB 10K SAS HDD, PERC H755, iDRAC9 Ent, Onboard 5720 Dual Port 1Gb, OCP Broadcom 57412 Dual Port 10GbE SFP+, (1+1) 700W PSU, 3 years Pro

Dell PowerEdge Rack Server – Technical Specifications

Processor

• Supports up to two 3rd Generation Intel® Xeon® Scalable processors

• Up to 32 cores per processor

Memory

• 16 DDR4 DIMM slots

• Supports RDIMM, up to 1TB max capacity

• Speeds up to 3200 MT/s

• Registered ECC DDR4 DIMMs only

Storage Controller

• Internal Controllers: PERC H345, H355, H745, H755, H755N, HBA355i, S150

• Internal Boot Options:

  • Boot Optimized Storage Subsystem (BOSS-S2) with HW RAID and 2 x M.2 SSDs

  • Internal Dual SD Module

  • USB Boot

• External RAID Controller: PERC H840, HBA355e

Drive Bays

• Front Bays (configurable options):

  • Up to 8 x 3.5″ SAS/SATA (HDD/SSD) – up to 128TB

  • Up to 12 x 3.5″ SAS/SATA (HDD/SSD) – up to 192TB

  • Up to 8 x 2.5″ SAS/SATA/NVMe (HDD/SSD) – up to 61.44TB

  • Up to 16 x 2.5″ SAS/SATA (HDD/SSD) – up to 122.88TB

  • Up to 16 x 2.5″ SAS/SATA + 8 x 2.5″ NVMe – up to 184.32TB

• Rear Bays:

  • Up to 2 x 2.5″ SAS/SATA/NVMe – up to 15.36TB

Power Supply Options

• 600W, 800W, 1100W, and 1400W Platinum (100–240V AC or 240V DC) – hot swap, redundant

• 1100W -48V DC hot swap redundant (Only compatible with -48V to -60V DC input)

• All PSUs support Mixed Mode operation

Cooling and Fans

• Air cooling supported

• Up to 6 hot-swappable fans

• Available fan options:

  • Standard Fans

  • High-Performance Silver Fans

  • High-Performance Gold Fans

Chassis Dimensions

• Height: 86.8 mm (3.41 inches)

• Width: 482.0 mm (18.97 inches)

• Depth:

  • 707.78 mm (27.85 inches) without bezel

  • 721.62 mm (28.4 inches) with bezel

Form Factor

• 2U rack server

Embedded Management

• iDRAC9 with Lifecycle Controller

• iDRAC Service Module

• iDRAC Direct

• Optional Quick Sync 2 wireless module

Bezel Options

• Optional LCD bezel or Security bezel

OpenManage Systems

• OpenManage Enterprise

• Plugins:

  • OpenManage Power Manager

  • OpenManage SupportAssist

  • OpenManage Update Manager

• Mobile App: OpenManage Mobile

Integration & Monitoring Tools

• Supports integration with:

  • VMware vCenter, vRealize

  • Microsoft System Center

  • Red Hat Ansible Modules

  • BMC Truesight

  • IBM Tivoli (Netcool/OMNIbus, Network Manager)

  • Micro Focus Operations Manager

  • Nagios Core and Nagios XI

Security Features

• Silicon Root of Trust

• Cryptographically signed firmware

• Secure Boot & Secure Erase

• System Lockdown (requires iDRAC9 Enterprise or Datacenter)

• TPM 1.2/2.0 (FIPS, CC-TCG certified), TPM 2.0 China NationZ

Networking

• Embedded NIC: 2 x 1GbE LOM

• Optional: 1 x OCP 3.0 network slot

GPU Support

• GPU not supported

Ports

• Front:

  • 1 x iDRAC Direct (Micro-AB USB)

  • 1 x USB 2.0

  • 1 x VGA

• Rear:

  • 1 x USB 2.0

  • 1 x USB 3.0

  • 1 x Serial (optional)

  • 2 x Ethernet

  • 1 x VGA

• Internal:

  • 1 x USB 3.0 (optional)

Expansion Slots

• Up to 5 x PCIe Gen4 slots + 1 x PCIe Gen3 slot

  • 3 x Gen4 x16 (low-profile)

  • 2 x Gen4 x16 (optional, low-profile)

  • 1 x Gen3 x8 (x4 lane, low-profile)
